DTI I-606 PRO
Stand out it’s
finally possible
The new system with DTI (Digital Transfer Innuro) technology is here to set a new benchmark in the textile customization and transfer market.
It is designed for professional clients and high-production businesses looking to stand out and offer something truly unique.
Achieves a superior garment result compared to DTG, Water-Based Screen Printing, or DTF.
 |
Also suitable for |
| DTF productions. |
DTI Technology ( ).
The evolution of
dtf technology
The “DTI I-606 PRO” solution incorporates the DTI “Digital Transfer Innuro”. A new, exclusive and revolutionary technology developed by Innuro, managed by its own software connected to the machine and based on the“Direct To Film” for the reproduction of digital textile transfers never achieved until now.
| 01 | 02 | 03 | 04 |
| Soft touch superior to DTG and water-based screen printing. | Perfect Transpirability. | Elongation up to 370%. | Resolution, Definition, Quality and Colorimetry never achieved before. |
| 05 | 06 | 07 | 08 |
| Print Details Impossible until now. | Get an Optical White. | 8 colors (CMYK + W + RGBO). | Prints colors faithful to the original file on screen. |
| 01 | 02 | 03 | 04 |
| Managed in just a few clicks. | Configure multiple machines guaranteeing the same color, quality and final result in all of them. | Works without software or intermediate processes. | Process individual images or folders with multiple files. |
| 05 | 06 | 07 | 08 |
| Multiple machines can be managed by 1 operator. | Process files and send them to print from anywhere. | Automatically use the t-shirt background colors in your designs. White, Black, Blue, Green, Light Blue, Red and Yellow Garments. | DTI “Print&Cut” – Automatically adds cut marks and perimeter, eliminating manual cutting. |
| 09 | |||
| Configurable as a Web2Print solution. |
| 01 | 02 | 03 |
| Managed in just a few clicks. | Configure multiple machines guaranteeing the same color, quality and final result in all of them. | Works without software or intermediate processes. |
| 04 | 05 | 06 |
| Process individual images or folders with multiple files. | Multiple machines can be managed by 1 operator. | Process files and send them to print from anywhere. |
| 07 | 08 | 09 |
| Automatically use the t-shirt background colors in your designs. White, Black, Blue, Green, Light Blue, Red and Yellow Garments. | DTI “Print&Cut” – Automatically adds cut marks and perimeter, eliminating manual cutting. | Configurable as a Web2Print solution. |
| 01 | 02 | 03 | 04 |
| Up to 50% savings on ink. | Increase your production by 30%-40% without losing quality. | Increases resolution, definition and print quality. | Improves and fixes deficiencies in non-printable low resolution files. |
Plotter
Features
FirmWare
Equipped with 2 LCD touchscreen displays that allow viewing and managing all machine parameters/configurations and its status.
Unique Printhead Carriage
Innuro has developed an innovative printhead carriage which allows a perfect and precise printhead adjustment.
Achieve a unique quality increasing your productivity, avoiding ink smudges and noise in the printing design.
High-Capacity Ink Tanks
Equipped with 3 liter capacity ink tanks.
Increases capacity and unattended production while reducing time losses and operational costs.
Ink Level alarm
The LCD touchscreen display shows the remaining ink levels per color and notifies when ink needs to be replenished. It also includes both visual and audible alarms.
Innuro Degassing System
It includes 3 degassing lines. One per each white printhead.
It eliminated the air from the circuit, avoiding issues and improving printhead performance achieving a faster production speed.
Antistatic System
It includes 2 antistatic modules in the printing carriage.
Eliminates film static, allows production at maximum quality with continuous tones and avoids banding and ghost effect.
Dryer - Infrared Heater
Adjustable digital infrared heater with ventilation at the plotter exit.
It allows perfect pre-drying of the ink, essential for an optimal and high-quality final result.
It adapts to the environmental conditions of each customer and corrects temperature variations depending on each season.
Film End Detection Sensor
Motion sensor system which controls the film roll progress. It detects the end of the film roll and prevents production issues by stopping the printing process automatically.
Prevents ink pooling which could damage the machine and prints causing high extra costs.
Control Printing Process Remotely
An integrated LED light bar indicates the printing progress at all times.
It allows the operator to monitor multiple machines at the same time and know when to collect and send more printing jobs.
Control the Status of your machines
Control the status of one or multiple machines in line and remotely through a 3 LED light system: Green, Yellow and Red.
The operator is always informed if everything everything is running smoothly, which machine needs ink, powder or film replacement and if there is any minor or major issue, allowing timely intervention.
Automatic Maintenance System
Automatically configures the number of daily printhead cleanings, their duration and the type of cleaning: Strong, Medium or Light.
Workplace Safety System
Prevents workplace hazards by automatically pausing the printing process when it detects the plotter cover is opened.
Plotter-Oven Connection System
Union Kit which connects the Plotter and Oven forming a single Unit.
Ensures a perfect alignment and stability throughout the entire production process. Avoids any incident, movement deviation of the material and printing point.
Powder and Curing Unit
Features
Automatic Film Feeding System
Automatically loads the printed film into the powder and drying unit, eliminating the manual process, film waste, and the risk of operator handling.
Powder Level Alarm
Powder level warning system through audible alarm and a Led lights system.
Inlet and Outlet Vacuum Suction System
Inlet and Outlet Vacuum Suction system to guarantee perfect alignment and fixation of the film throughout the whole production process. It prevents from violent film pulling after printing, protecting the final prints from damage.
Remotely Monitor the Status
Monitor the status of one or multiple units online or remotely with our 3-Led Light System: Green, Yellow, Red. The operator is always informed if everything is running smoothly, which units needs powder, and if there any minor or major issue, allowing timely intervention.
New Liquid Evacuation System
It includes a drainage and evacuation system for liquids generated during production, channeling them to a separate waste tank. This prevents issues with electronics and other components.
Film Finish Sensor
Workplace Safety System
Prevents workplace hazards by automatically pausing the dispensers, heaters, and powder agitators when it detects the cover is opened.
Film Exit Guide Tray
Guides the film from the oven exit to the roll-by-roll collection unit. Avoids wrinkles, folds, deviations or any incident in the film before being collected.
Built-in Industrial Purifier
Includes a professional and industrial system for extracting and purifying water vapor and oil generated during production. It prevents humidity nd residues in the print, ensuring a perfect and highly durable transfer.

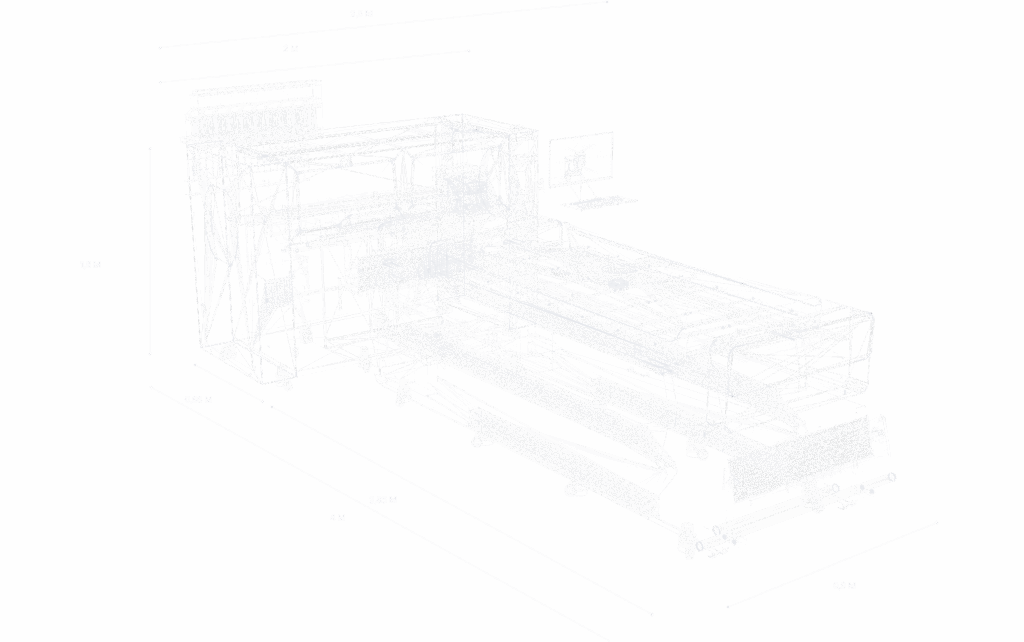

DESIGN, MECHANISM
& ELECTRONICS 100%
INNURO
Through innovation and Innuro engineering, the design, mechanics and electronics of the DTI-606-PRO has been developed in search of excellence.
DESIGN, MECHANISM
& ELECTRONICS 100%
INNURO
Through innovation and Innuro engineering, the design, mechanics and electronics of the DTI-606-PRO has been developed in search of excellence.
